What hardware does an HMI acquisition system include?

Reference Colour Checkers V7 and V8, the PFCL filter set (PFCL-A, PFCL-B, UV/IR-cut and 750, 850 and 950 nm infrared filters with M77 mounts), modified full-spectrum and infrared camera configurations, the optional Dual Filter Single-Shot PFCL-Lens and controlled illumination.

Which cameras are used?

Example configurations are based on Fujifilm GFX II IR and Nikon Z8 FR platforms. The dual-filter lens is available for Nikon Z mirrorless systems.

TECHNOLOGY 01

Optical & Capture Hardware

Reliable spectral data starts with the physical setup. Profilocolore combines Reference Colour Checker, PFCL spectral filters, modified full-spectrum cameras, lenses and controlled illumination into one matched acquisition system, specified, assembled and tested together rather than sourced as separate parts. The whole setup is fully portable, so it can be taken directly to the object, on site or in the field.

Purpose

Build a stable, repeatable physical foundation for calibrated multispectral and colorimetric measurement. By controlling every variable at capture, from Reference Colour Checker and filters to camera, optics and lighting, the system delivers images whose colour and spectral values can be trusted, compared over time and reused for analysis, conservation and documentation.

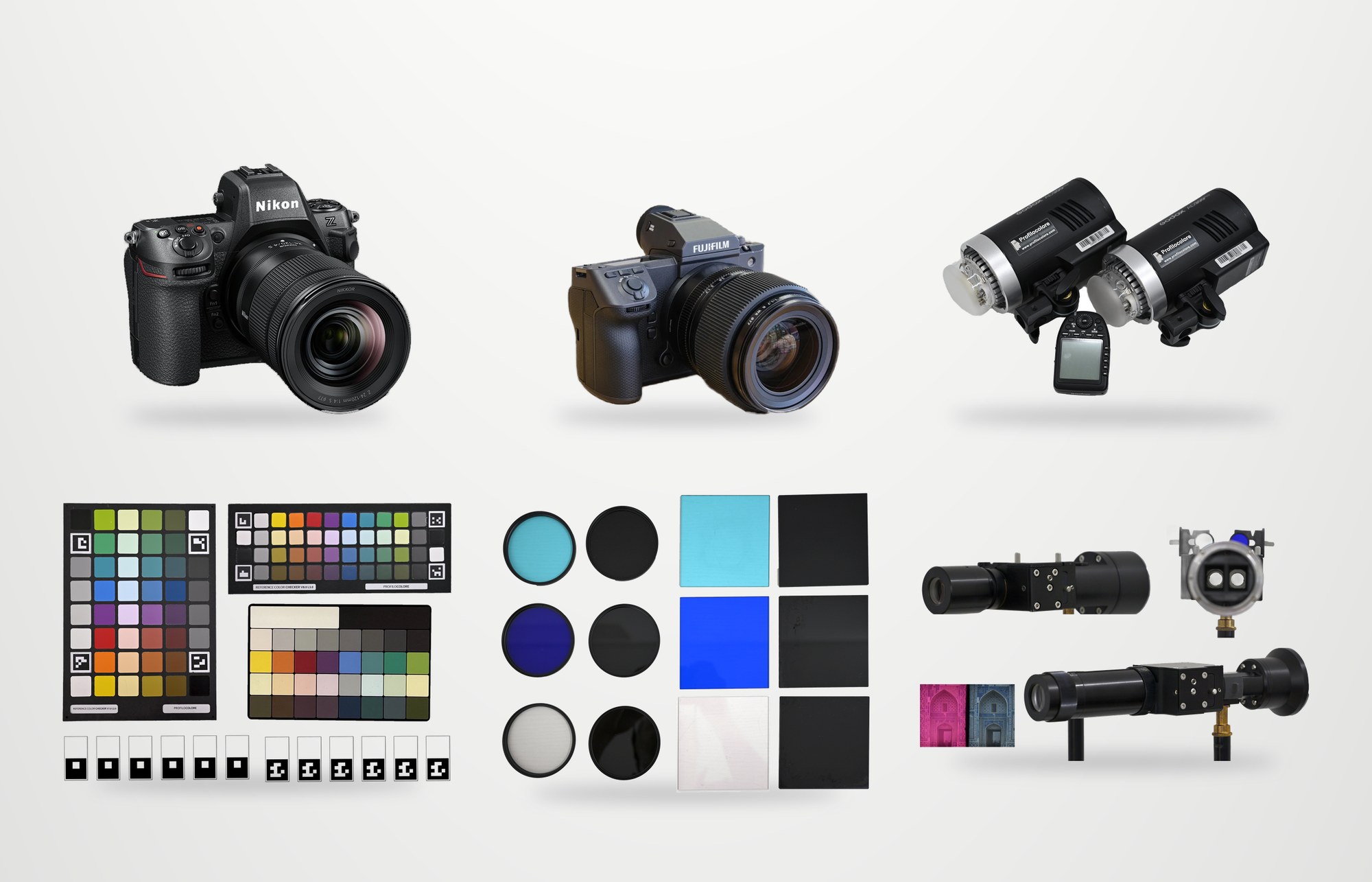

Components

Reference Colour Checkers

V7, V8 and Silicon in A4 and compact versions of the Reference Colour Checker for colour and spectral calibration workflows.

PFCL filter set

PFCL-A, PFCL-B, UV/IR-cut and 750, 850 and 950 nm infrared filters with M77 mounts.

Modified camera configurations

Example full-spectrum and infrared configurations based on Fujifilm GFX II IR and Nikon Z8 FR platforms.

Dual Filter Single-Shot PFCL-Lens

Optional dual-filter custom lens configuration for Nikon Z mirrorless systems.

Illumination

Optional multispectral LED sources, with xenon flashes and 365 nm UV sources selected to complete the application setup.
